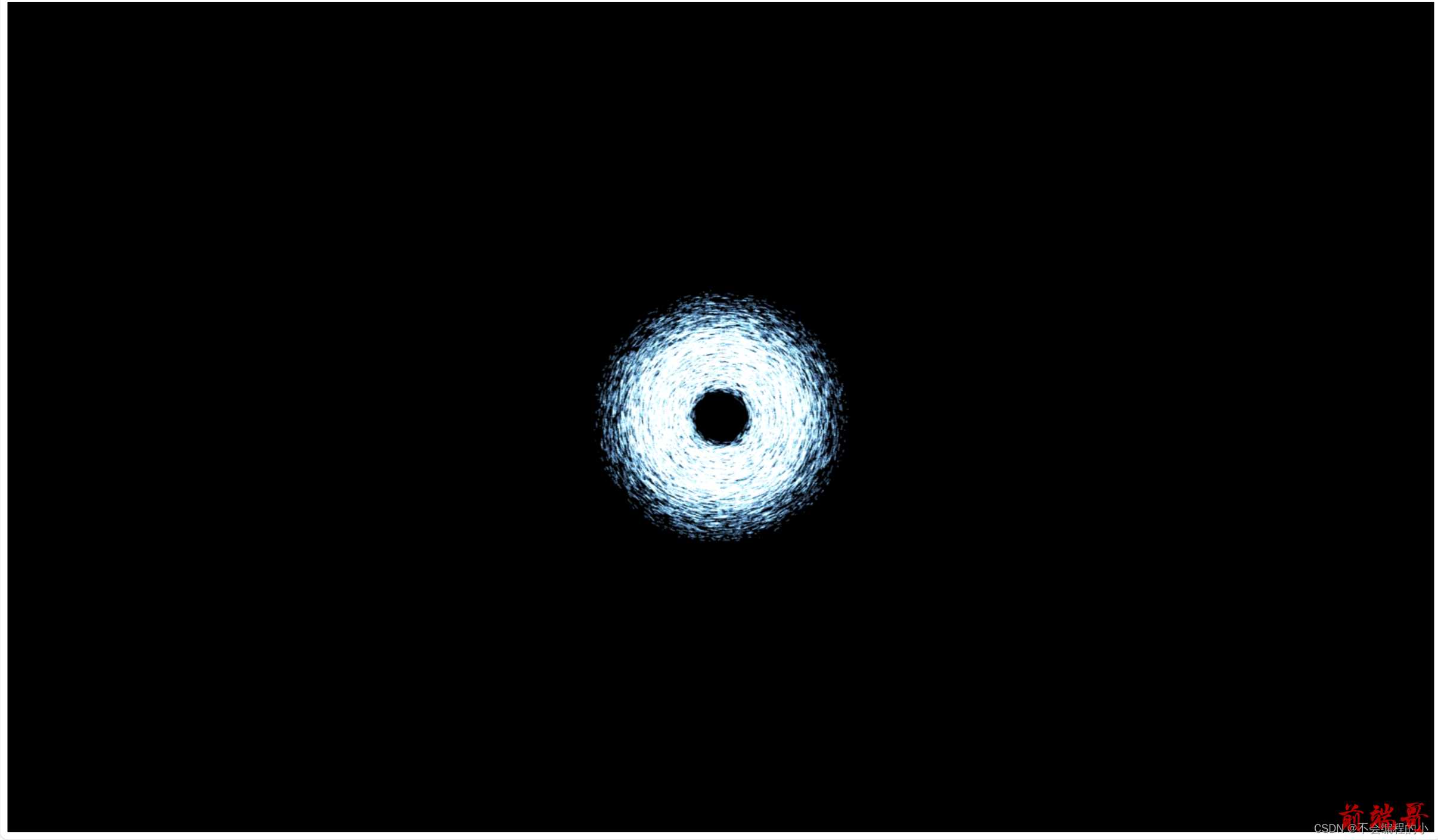

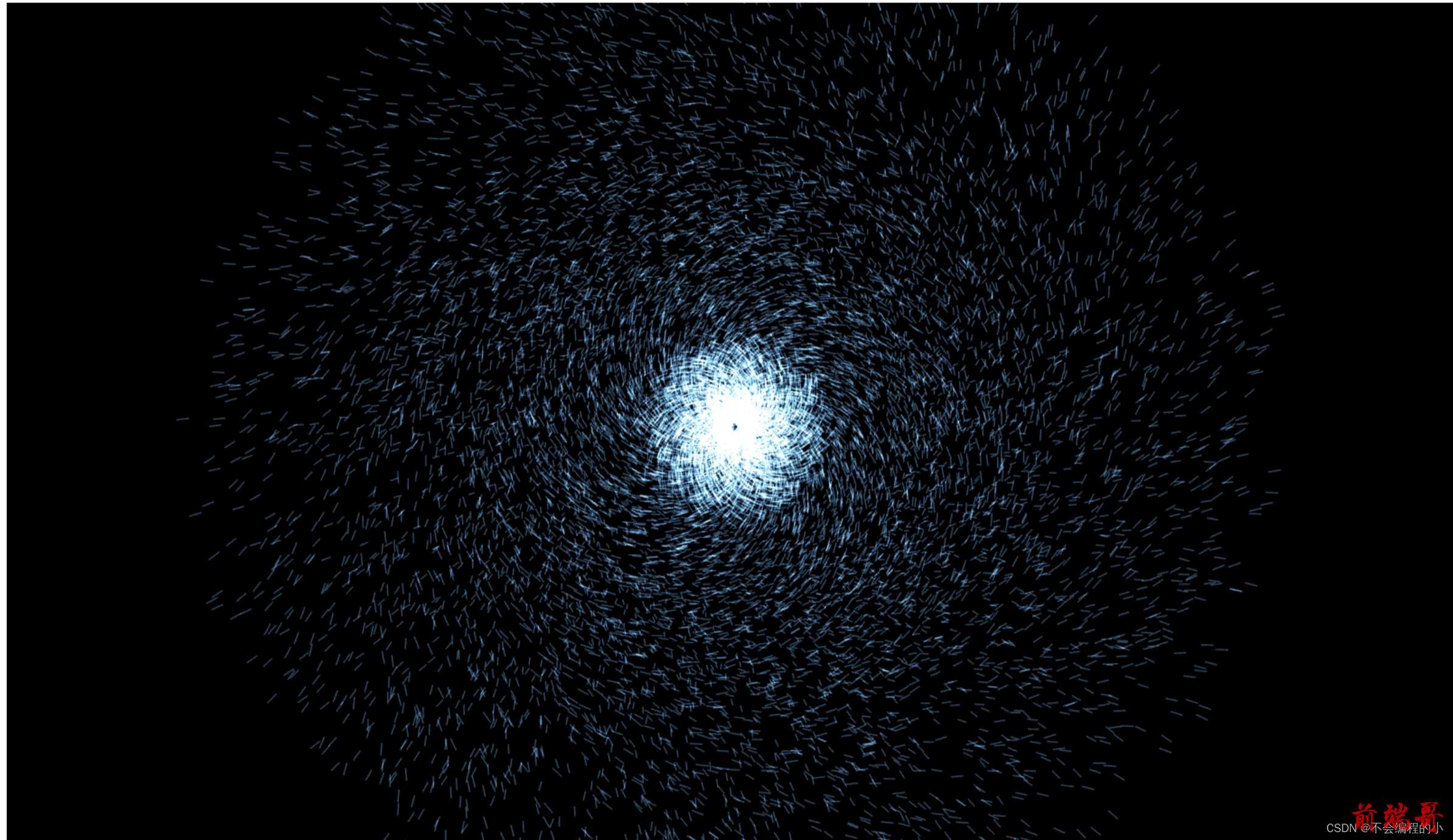

效果图展示
1.初始化 WebGL 上下文，并创建顶点着色器和片元着色器。
// 获取 canvas 元素，并设置 WebGL 上下文
var canvas = document.getElementById('myCanvas');
var gl = canvas.getContext('webgl');
// 定义顶点着色器
var vertexShaderSource = `
attribute vec2 position;
void main() {
gl_Position = vec4(position, 0, 1.0);
}
`;
// 定义片元着色器
var fragmentShaderSource = `
void main() {
gl_FragColor = vec4(1.0, 1.0, 1.0, 1.0);
}
`;
// 创建顶点着色器
var vertexShader = gl.createShader(gl.VERTEX_SHADER);
gl.shaderSource(vertexShader, vertexShaderSource);
gl.compileShader(vertexShader);
// 创建片元睝色器
var fragmentShader = gl.createShader(gl.FRAGMENT_SHADER);
gl.shaderSource(fragmentShader, fragmentShaderSource);
gl.compileShader(fragmentShader);2.创建程序，并设置视口大小和背景颜色。
// 创建程序
var program = gl.createProgram();
gl.attachShader(program, vertexShader);
gl.attachShader(program, fragmentShader);
gl.linkProgram(program);
gl.useProgram(program);
// 设置视口大小和背景颜色
gl.viewport(0, 0, canvas.width, canvas.height);
gl.clearColor(0.0, 0.0, 0.0, 1.0);
gl.clear(gl.COLOR_BUFFER_BIT);
3.创建顶点数据，并传入缓冲区。
// 创建顶点数据
var vertices = new Float32Array([
-0.5, 0.5,
-0.5, -0.5,
0.5, -0.5,
0.5, 0.5
]);
// 创建缓冲区并传入顶点数据
var vertexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);
4.获取位置属性并启用，然后定义绘制函数。
// 获取位置属性并启用
var position = gl.getAttribLocation(program, 'position');
gl.vertexAttribPointer(position, 2, gl.FLOAT, false, 0, 0);
gl.enableVertexAttribArray(position);
// 绘制函数
function draw() {
// 更新线条位置和形状的逻辑
// 清除画布
gl.clear(gl.COLOR_BUFFER_BIT);
// 绘制三角形
gl.drawArrays(gl.TRIANGLE_FAN, 0, 4);
// 请求下一帧动画
requestAnimationFrame(draw);
}5.最后通过 requestAnimationFrame() 方法开始绘制动画。
// 开始绘制动画
requestAnimationFrame(draw);全部代码如下：
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML>
<HEAD>
<TITLE> New Document </TITLE>
<META NAME="Generator" CONTENT="EditPlus">
<META NAME="Author" CONTENT="">
<META NAME="Keywords" CONTENT="">
<META NAME="Description" CONTENT="">
<style>@import "compass/css3";
@import "compass/reset";
@import "compass/css3";
body{
overflow: hidden;
}
canvas{
width: 100%;
height: 100%;
}</style>
</HEAD>
<BODY>
<canvas id="c"></canvas>
<script id="shader-fs" type="x-shader/x-fragment">
#ifdef GL_ES
precision highp float;
#endif
void main(void) {
gl_FragColor = vec4(0.2, 0.3, 0.4, 1.0);
}
</script>
<script id="shader-vs" type="x-shader/x-vertex">
attribute vec3 vertexPosition;
uniform mat4 modelViewMatrix;
uniform mat4 perspectiveMatrix;
void main(void) {
gl_Position = perspectiveMatrix * modelViewMatrix * vec4( vertexPosition, 1.0);
}
</script>
<script>window.onload = loadScene;
var canvas, gl,
ratio,
vertices,
velocities,
freqArr,
cw,
ch,
colorLoc,
thetaArr,
velThetaArr,
velRadArr,
boldRateArr,
drawType,
numLines = 40000;
var target = [];
var randomTargetXArr = [], randomTargetYArr = [];
drawType = 2;
/**
* Initialises WebGL and creates the 3D scene.
*/
function loadScene() {
// Get the canvas element
canvas = document.getElementById("c");
// Get the WebGL context
gl = canvas.getContext("experimental-webgl");
// Check whether the WebGL context is available or not
// if it's not available exit
if (!gl) {
alert("There's no WebGL context available.");
return;
}
// Set the viewport to the canvas width and height
cw = window.innerWidth;
ch = window.innerHeight;
canvas.width = cw;
canvas.height = ch;
gl.viewport(0, 0, canvas.width, canvas.height);
// Load the vertex shader that's defined in a separate script
// block at the top of this page.
// More info about shaders: http://en.wikipedia.org/wiki/Shader_Model
// More info about GLSL: http://en.wikipedia.org/wiki/GLSL
// More info about vertex shaders: http://en.wikipedia.org/wiki/Vertex_shader
// Grab the script element
var vertexShaderScript = document.getElementById("shader-vs");
var vertexShader = gl.createShader(gl.VERTEX_SHADER);
gl.shaderSource(vertexShader, vertexShaderScript.text);
gl.compileShader(vertexShader);
if (!gl.getShaderParameter(vertexShader, gl.COMPILE_STATUS)) {
alert("Couldn't compile the vertex shader");
gl.deleteShader(vertexShader);
return;
}
// Load the fragment shader that's defined in a separate script
// More info about fragment shaders: http://en.wikipedia.org/wiki/Fragment_shader
var fragmentShaderScript = document.getElementById("shader-fs");
var fragmentShader = gl.createShader(gl.FRAGMENT_SHADER);
gl.shaderSource(fragmentShader, fragmentShaderScript.text);
gl.compileShader(fragmentShader);
if (!gl.getShaderParameter(fragmentShader, gl.COMPILE_STATUS)) {
alert("Couldn't compile the fragment shader");
gl.deleteShader(fragmentShader);
return;
}
// Create a shader program.
gl.program = gl.createProgram();
gl.attachShader(gl.program, vertexShader);
gl.attachShader(gl.program, fragmentShader);
gl.linkProgram(gl.program);
if (!gl.getProgramParameter(gl.program, gl.LINK_STATUS)) {
alert("Unable to initialise shaders");
gl.deleteProgram(gl.program);
gl.deleteProgram(vertexShader);
gl.deleteProgram(fragmentShader);
return;
}
// Install the program as part of the current rendering state
gl.useProgram(gl.program);
// Get the vertexPosition attribute from the linked shader program
var vertexPosition = gl.getAttribLocation(gl.program, "vertexPosition");
// Enable the vertexPosition vertex attribute array. If enabled, the array
// will be accessed an used for rendering when calls are made to commands like
// gl.drawArrays, gl.drawElements, etc.
gl.enableVertexAttribArray(vertexPosition);
// Clear the color buffer (r, g, b, a) with the specified color
gl.clearColor(0.0, 0.0, 0.0, 1.0);
// Clear the depth buffer. The value specified is clamped to the range [0,1].
// More info about depth buffers: http://en.wikipedia.org/wiki/Depth_buffer
gl.clearDepth(1.0);
// Enable depth testing. This is a technique used for hidden surface removal.
// It assigns a value (z) to each pixel that represents the distance from this
// pixel to the viewer. When another pixel is drawn at the same location the z
// values are compared in order to determine which pixel should be drawn.
//gl.enable(gl.DEPTH_TEST);
gl.enable(gl.BLEND);
gl.disable(gl.DEPTH_TEST);
gl.blendFunc(gl.SRC_ALPHA, gl.ONE);
// Specify which function to use for depth buffer comparisons. It compares the
// value of the incoming pixel against the one stored in the depth buffer.
// Possible values are (from the OpenGL documentation):
// GL_NEVER - Never passes.
// GL_LESS - Passes if the incoming depth value is less than the stored depth value.
// GL_EQUAL - Passes if the incoming depth value is equal to the stored depth value.
// GL_LEQUAL - Passes if the incoming depth value is less than or equal to the stored depth value.
// GL_GREATER - Passes if the incoming depth value is greater than the stored depth value.
// GL_NOTEQUAL - Passes if the incoming depth value is not equal to the stored depth value.
// GL_GEQUAL - Passes if the incoming depth value is greater than or equal to the stored depth value.
// GL_ALWAYS - Always passes.
//gl.depthFunc(gl.LEQUAL);
// Now create a shape.
// First create a vertex buffer in which we can store our data.
var vertexBuffer = gl.createBuffer();
// Bind the buffer object to the ARRAY_BUFFER target.
gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
// Specify the vertex positions (x, y, z)
// ------------------
setup();
// ------------------
vertices = new Float32Array(vertices);
velocities = new Float32Array(velocities);
thetaArr = new Float32Array(thetaArr);
velThetaArr = new Float32Array(velThetaArr);
velRadArr = new Float32Array(velRadArr);
// Creates a new data store for the vertices array which is bound to the ARRAY_BUFFER.
// The third paramater indicates the usage pattern of the data store. Possible values are
// (from the OpenGL documentation):
// The frequency of access may be one of these:
// STREAM - The data store contents will be modified once and used at most a few times.
// STATIC - The data store contents will be modified once and used many times.
// DYNAMIC - The data store contents will be modified repeatedly and used many times.
// The nature of access may be one of these:
// DRAW - The data store contents are modified by the application, and used as the source for
// GL drawing and image specification commands.
// READ - The data store contents are modified by reading data from the GL, and used to return
// that data when queried by the application.
// COPY - The data store contents are modified by reading data from the GL, and used as the source
// for GL drawing and image specification commands.
gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.DYNAMIC_DRAW);
// Clear the color buffer and the depth buffer
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
// Define the viewing frustum parameters
// More info: http://en.wikipedia.org/wiki/Viewing_frustum
// More info: https://knol.google.com/k/view-frustum
var fieldOfView = 30.0;
var aspectRatio = canvas.width / canvas.height;
var nearPlane = 1.0;
var farPlane = 10000.0;
var top = nearPlane * Math.tan(fieldOfView * Math.PI / 360.0);
var bottom = -top;
var right = top * aspectRatio;
var left = -right;
// Create the perspective matrix. The OpenGL function that's normally used for this,
// glFrustum() is not included in the WebGL API. That's why we have to do it manually here.
// More info: http://www.cs.utk.edu/~vose/c-stuff/opengl/glFrustum.html
var a = (right + left) / (right - left);
var b = (top + bottom) / (top - bottom);
var c = (farPlane + nearPlane) / (farPlane - nearPlane);
var d = (2 * farPlane * nearPlane) / (farPlane - nearPlane);
var x = (2 * nearPlane) / (right - left);
var y = (2 * nearPlane) / (top - bottom);
var perspectiveMatrix = [
x, 0, a, 0,
0, y, b, 0,
0, 0, c, d,
0, 0, -1, 0
];
// Create the modelview matrix
// More info about the modelview matrix: http://3dengine.org/Modelview_matrix
// More info about the identity matrix: http://en.wikipedia.org/wiki/Identity_matrix
var modelViewMatrix = [
1, 0, 0, 0,
0, 1, 0, 0,
0, 0, 1, 0,
0, 0, 0, 1
];
// Get the vertex position attribute location from the shader program
var vertexPosAttribLocation = gl.getAttribLocation(gl.program, "vertexPosition");
// colorLoc = gl.getVaryingLocation(gl.program, "vColor");
// alert("color loc : " + colorLoc );
// Specify the location and format of the vertex position attribute
gl.vertexAttribPointer(vertexPosAttribLocation, 3.0, gl.FLOAT, false, 0, 0);
//gl.vertexAttribPointer(colorLoc, 4.0, gl.FLOAT, false, 0, 0);
// Get the location of the "modelViewMatrix" uniform variable from the
// shader program
var uModelViewMatrix = gl.getUniformLocation(gl.program, "modelViewMatrix");
// Get the location of the "perspectiveMatrix" uniform variable from the
// shader program
var uPerspectiveMatrix = gl.getUniformLocation(gl.program, "perspectiveMatrix");
// Set the values
gl.uniformMatrix4fv(uModelViewMatrix, false, new Float32Array(perspectiveMatrix));
gl.uniformMatrix4fv(uPerspectiveMatrix, false, new Float32Array(modelViewMatrix));
// gl.varyingVector4fv(
// Draw the triangles in the vertex buffer. The first parameter specifies what
// drawing mode to use. This can be GL_POINTS, GL_LINE_STRIP, GL_LINE_LOOP,
// GL_LINES, GL_TRIANGLE_STRIP, GL_TRIANGLE_FAN, GL_TRIANGLES, GL_QUAD_STRIP,
// GL_QUADS, and GL_POLYGON
//gl.drawArrays( gl.LINES, 0, numLines );
//gl.flush();
//setInterval( drawScene, 1000 / 40 );
animate();
setTimeout(timer, 1500);
}
var count = 0;
var cn = 0;
function animate() {
requestAnimationFrame(animate);
drawScene();
}
function drawScene() {
draw();
gl.lineWidth(1);
gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.DYNAMIC_DRAW);
gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
//gl.drawArrays( gl.LINES_STRIP, 0, numLines );
gl.drawArrays(gl.LINES, 0, numLines);
//gl.drawArrays( gl.QUAD_STRIP, 0, numLines );
gl.flush();
}
// ===================================
function setup() {
setup2();
}
function draw() {
switch (drawType) {
case 0:
draw0();
break;
case 1:
draw1();
break;
case 2:
draw2();
break;
}
}
// ===================================
function setup1() {
vertices = [];
velThetaArr = [];
velRadArr = [];
ratio = cw / ch;
velocities = [];
// -------------------------------
for (var i = 0; i < numLines; i++) {
var rad = Math.random() * 2 + .5;
var theta = Math.random() * Math.PI * 2;
var velTheta = Math.random() * Math.PI * 2;
vertices.push(rad * Math.cos(theta), rad * Math.sin(theta), 1.83);//(Math.random() * 2 - 1)*ratio, Math.random() * 2 - 1, 1.83 );
vertices.push(rad * Math.cos(theta), rad * Math.sin(theta), 1.83);
velocities.push((Math.random() * 2 - 1) * .05, (Math.random() * 2 - 1) * .05, .93 + Math.random() * .02);
velThetaArr.push(velTheta);
velRadArr.push(rad);
}
}
// -------------------------------
function setup2() {
vertices = [];
velThetaArr = [];
velRadArr = [];
ratio = cw / ch;
velocities = [];
thetaArr = [];
freqArr = [];
boldRateArr = [];
// -------------------------------
for (var ii = 0; ii < numLines; ii++) {
var rad = ( 0.1 + .2 * Math.random() );
var theta = Math.random() * Math.PI * 2;
var velTheta = Math.random() * Math.PI * 2 / 30;
var freq = Math.random() * 0.12 + 0.03;
var boldRate = Math.random() * .04 + .01;
var randomPosX = (Math.random() * 2 - 1) * window.innerWidth / window.innerHeight;
var randomPosY = Math.random() * 2 - 1;
vertices.push(rad * Math.cos(theta), rad * Math.sin(theta), 1.83);
vertices.push(rad * Math.cos(theta), rad * Math.sin(theta), 1.83);
thetaArr.push(theta);
velThetaArr.push(velTheta);
velRadArr.push(rad);
freqArr.push(freq);
boldRateArr.push(boldRate);
randomTargetXArr.push(randomPosX);
randomTargetYArr.push(randomPosY);
}
freqArr = new Float32Array(freqArr);
}
// -------------------------------
// ===================================
function draw0() {
var i, n = vertices.length, p, bp;
var px, py;
var pTheta;
var rad;
var num;
var targetX, targetY;
for (i = 0; i < numLines * 2; i += 2) {
count += .3;
bp = i * 3;
vertices[bp] = vertices[bp + 3];
vertices[bp + 1] = vertices[bp + 4];
num = parseInt(i / 2);
targetX = randomTargetXArr[num];
targetY = randomTargetYArr[num];
px = vertices[bp + 3];
px += (targetX - px) * (Math.random() * .04 + .06);
vertices[bp + 3] = px;
//py = (Math.sin(cn) + 1) * .2 * (Math.random() * .5 - .25);
py = vertices[bp + 4];
py += (targetY - py) * (Math.random() * .04 + .06);
vertices[bp + 4] = py;
}
}
// -------------------------------
function draw1() {
var i, n = vertices.length, p, bp;
var px, py;
var pTheta;
var rad;
var num;
var targetX, targetY;
for (i = 0; i < numLines * 2; i += 2) {
count += .3;
bp = i * 3;
vertices[bp] = vertices[bp + 3];
vertices[bp + 1] = vertices[bp + 4];
num = parseInt(i / 2);
pTheta = thetaArr[num];
rad = velRadArr[num];
pTheta = pTheta + velThetaArr[num];
thetaArr[num] = pTheta;
targetX = rad * Math.cos(pTheta);
targetY = rad * Math.sin(pTheta);
px = vertices[bp + 3];
px += (targetX - px) * (Math.random() * .1 + .1);
vertices[bp + 3] = px;
//py = (Math.sin(cn) + 1) * .2 * (Math.random() * .5 - .25);
py = vertices[bp + 4];
py += (targetY - py) * (Math.random() * .1 + .1);
vertices[bp + 4] = py;
}
}
// -------------------------------
function draw2() {
cn += .1;
var i, n = vertices.length, p, bp;
var px, py;
var pTheta;
var rad;
var num;
for (i = 0; i < numLines * 2; i += 2) {
count += .3;
bp = i * 3;
// copy old positions
vertices[bp] = vertices[bp + 3];
vertices[bp + 1] = vertices[bp + 4];
num = parseInt(i / 2);
pTheta = thetaArr[num];
rad = velRadArr[num];// + Math.cos(pTheta + i * freqArr[i]) * boldRateArr[num];
pTheta = pTheta + velThetaArr[num];
thetaArr[num] = pTheta;
px = vertices[bp + 3];
px = rad * Math.cos(pTheta) * 0.1 + px;
vertices[bp + 3] = px;
//py = (Math.sin(cn) + 1) * .2 * (Math.random() * .5 - .25);
py = vertices[bp + 4];
py = py + rad * Math.sin(pTheta) * 0.1;
//p *= ( Math.random() -.5);
vertices[bp + 4] = py;
}
}
// -------------------------------
function timer() {
drawType = (drawType + 1) % 3;
setTimeout(timer, 1500);
}
</script>
</BODY>
</HTML>
光看不点赞，罚款50
