【AntV-G6】决策树简单实例

2024-05-23 20:05:33 前端知识 前端哥 434 190 我要收藏

使用步骤

  1. 复制treeMind.vue文件到前端页面目录,
  2. 在需要展示的页面引入treeMind
  3. npm install错误解决方法

树组件 treeMind.vue

<template>
  <div id="container"></div>
</template>

<script>
import insertCss from "insert-css";
import G6 from "@antv/g6";

export default {
  name: "treeMind",
  props: {
    // 数据
    data: {
      type: Object,
      default() {
        return {};
      }
    },
    //高
    height: {
      type: Number,
      default() {
        return 500;
      }
    }
  },
  data() {
    return {}
  },
  mounted() {

  },
  methods: {
    init(mockData) {

      insertCss(`
      .g6-component-tooltip {
        background-color: rgba(0,0,0, 0.65);
        padding: 10px;
        box-shadow: rgb(174, 174, 174) 0px 0px 10px;
        width: fit-content;
        color: #fff;
        border-radius = 4px;
      }
    `);

      const colors = {
        BLUE: '#5B8FF9',
        RED: '#F46649',
        YELLOW: '#EEBC20',
        GREEN: '#5BD8A6',
        DARKGREY: '#A7A7A7',
        BROWN: '#A98847',
      };

      //  组件props
      const props = {
        data: mockData ? mockData : this.data,
        config: {
          padding: [20, 50],
          defaultLevel: 3,
          defaultZoom: 0.8,
          modes: {default: ['zoom-canvas', 'drag-canvas']},
        },
      };

      const container = document.getElementById('container');
      const width = container.scrollWidth;
      const height = container.scrollHeight || 600;

      // 默认配置
      const defaultConfig = {
        width,
        height,
        modes: {
          default: ['zoom-canvas', 'drag-canvas'],
        },
        fitView: true,
        animate: true,
        defaultNode: {
          type: 'flow-rect',
        },
        defaultEdge: {
          type: 'cubic-horizontal',
          style: {
            stroke: '#CED4D9',
          },
        },
        layout: {
          type: 'indented',
          direction: 'LR',
          dropCap: false,
          indent: 300,
          getHeight: () => {
            return 60;
          },
        },
      };

      // 自定义节点、边
      const registerFn = () => {
        /**
         * 自定义节点
         */
        G6.registerNode(
            'flow-rect',
            {
              shapeType: 'flow-rect',
              draw(cfg, group) {
                const {
                  name = '',
                  qty,
                  collapsed,
                  unit,
                  color,
                  rate
                } = cfg;

                const grey = '#CED4D9';
                const rectConfig = {
                  width: 140,
                  height: 50,
                  lineWidth: 1,
                  fontSize: 12,
                  fill: '#fff',
                  radius: 4,
                  stroke: grey,
                  opacity: 1,
                };

                const nodeOrigin = {
                  x: -rectConfig.width / 2,
                  y: -rectConfig.height / 2,
                };

                const textConfig = {
                  //center / end / left / right / start
                  textAlign: 'center',
                  //top / middle / bottom / alphabetic / hanging
                  textBaseline: 'bottom',
                };

                const rect = group.addShape('rect', {
                  attrs: {
                    x: nodeOrigin.x,
                    y: nodeOrigin.y,
                    ...rectConfig,
                  },
                });

                const rectBBox = rect.getBBox();

                // name
                group.addShape('text', {
                  attrs: {
                    ...textConfig,
                    x: 0 ,
                    y: 20 + nodeOrigin.y,
                    text: name.length > 28 ? name.substr(0, 28) + '...' : name,
                    fontSize: 12,
                    opacity: 0.85,
                    fill: '#000',
                    cursor: 'pointer',
                  },
                  name: 'name-shape',
                });

                // qty
                const qtyLabel = group.addShape('text', {
                  attrs: {
                    ...textConfig,
                    //调整数量的宽
                    x: -4,
                    y: rectBBox.maxY - 12,
                    text: qty,
                    fontSize: 12,
                    fill: '#000',
                    opacity: 0.85,
                  },
                });

                //  unit
                group.addShape('text', {
                  attrs: {
                    ...textConfig,
                    //调整单位的宽
                    x: qtyLabel.getBBox().maxX +20,
                    y: rectBBox.maxY - 12,
                    text: unit,
                    fontSize: 12,
                    fill: '#000',
                    opacity: 0.75,
                  },
                });

                // bottom line background
                const bottomBackRect = group.addShape('rect', {
                  attrs: {
                    x: nodeOrigin.x,
                    y: rectBBox.maxY - 4,
                    width: rectConfig.width,
                    height: 4,
                    radius: [0, 0, rectConfig.radius, rectConfig.radius],
                    fill: '#E0DFE3',
                  },
                });

                // bottom percent
                const bottomRect = group.addShape('rect', {
                  attrs: {
                    x: nodeOrigin.x,
                    y: rectBBox.maxY - 4,
                    width: rate * rectBBox.width,
                    height: 4,
                    radius: [0, 0, rectConfig.radius, rectConfig.radius],
                    fill: colors[color],
                  },
                });

                // collapse rect
                if (cfg.children && cfg.children.length) {
                  group.addShape('rect', {
                    attrs: {
                      x: rectConfig.width / 2 - 8,
                      y: -8,
                      width: 16,
                      height: 16,
                      stroke: 'rgba(0, 0, 0, 0.25)',
                      cursor: 'pointer',
                      fill: '#fff',
                    },
                    name: 'collapse-back',
                    modelId: cfg.id,
                  });

                  // collpase text
                  group.addShape('text', {
                    attrs: {
                      x: rectConfig.width / 2,
                      y: 0,
                      textAlign: 'center',
                      textBaseline: 'middle',
                      text: collapsed ? '+' : '-',
                      fontSize: 16,
                      cursor: 'pointer',
                      fill: 'rgba(0, 0, 0, 0.25)',
                    },
                    name: 'collapse-text',
                    modelId: cfg.id,
                  });
                }

                this.drawLinkPoints(cfg, group);
                return rect;
              },
              update(cfg, item) {
                const {level, color, name} = cfg;
                const group = item.getContainer();
                let mask = group.find(ele => ele.get('name') === 'mask-shape');
                let maskLabel = group.find(ele => ele.get('name') === 'mask-qty-shape');
                if (level === 0) {
                  group.get('children').forEach(child => {
                    if (child.get('name')?.includes('collapse')) return;
                    child.hide();
                  })
                  if (!mask) {
                    mask = group.addShape('rect', {
                      attrs: {
                        x: -101,
                        y: -30,
                        width: 202,
                        height: 60,
                        opacity: 0,
                        fill: colors[color]
                      },
                      name: 'mask-shape',
                    });
                    maskLabel = group.addShape('text', {
                      attrs: {
                        fill: '#fff',
                        fontSize: 20,
                        x: 0,
                        y: 10,
                        text: name.length > 28 ? name.substr(0, 16) + '...' : name,
                        textAlign: 'center',
                        opacity: 0,
                      },
                      name: 'mask-qty-shape',
                    });
                    const collapseRect = group.find(ele => ele.get('name') === 'collapse-back');
                    const collapseText = group.find(ele => ele.get('name') === 'collapse-text');
                    collapseRect?.toFront();
                    collapseText?.toFront();
                  } else {
                    mask.show();
                    maskLabel.show();
                  }
                  mask.animate({opacity: 1}, 200);
                  maskLabel.animate({opacity: 1}, 200);
                  return mask;
                } else {
                  group.get('children').forEach(child => {
                    if (child.get('name')?.includes('collapse')) return;
                    child.show();
                  })
                  mask?.animate({opacity: 0}, {
                    duration: 200,
                    callback: () => mask.hide()
                  });
                  maskLabel?.animate({opacity: 0}, {
                    duration: 200,
                    callback: () => maskLabel.hide()
                  });
                }
                this.updateLinkPoints(cfg, group);
              },
              setState(name, value, item) {
                if (name === 'collapse') {
                  const group = item.getContainer();
                  const collapseText = group.find((e) => e.get('name') === 'collapse-text');
                  if (collapseText) {
                    if (!value) {
                      collapseText.attr({
                        text: '-',
                      });
                    } else {
                      collapseText.attr({
                        text: '+',
                      });
                    }
                  }
                }
              },
              getAnchorPoints() {
                return [
                  [0, 0.5],
                  [1, 0.5],
                ];
              },
            },
            'rect',
        );

        G6.registerEdge(
            'flow-cubic',
            {
              getControlPoints(cfg) {
                let controlPoints = cfg.controlPoints; // 指定controlPoints
                if (!controlPoints || !controlPoints.length) {
                  const {startPoint, endPoint, sourceNode, targetNode} = cfg;
                  const {x: startX, y: startY, coefficientX, coefficientY} = sourceNode
                      ? sourceNode.getModel()
                      : startPoint;
                  const {x: endX, y: endY} = targetNode ? targetNode.getModel() : endPoint;
                  let curveStart = (endX - startX) * coefficientX;
                  let curveEnd = (endY - startY) * coefficientY;
                  curveStart = curveStart > 40 ? 40 : curveStart;
                  curveEnd = curveEnd < -30 ? curveEnd : -30;
                  controlPoints = [
                    {x: startPoint.x + curveStart, y: startPoint.y},
                    {x: endPoint.x + curveEnd, y: endPoint.y},
                  ];
                }
                return controlPoints;
              },
              getPath(points) {
                const path = [];
                path.push(['M', points[0].x, points[0].y]);
                path.push([
                  'C',
                  points[1].x,
                  points[1].y,
                  points[2].x,
                  points[2].y,
                  points[3].x,
                  points[3].y,
                ]);
                return path;
              },
            },
            'single-line',
        );
      };

      registerFn();

      const {data} = props;
      let graph = null;

      const initGraph = (data) => {
        if (!data) {
          return;
        }
        const {onInit, config} = props;
        const tooltip = new G6.Tooltip({
          // offsetX and offsetY include the padding of the parent container
          offsetX: 20,
          offsetY: 30,
          // the types of items that allow the tooltip show up
          // 允许出现 tooltip 的 item 类型
          itemTypes: ['node'],
          // custom the tooltip's content
          // 自定义 tooltip 内容
          getContent: (e) => {
            const outDiv = document.createElement('div');
            //outDiv.style.padding = '0px 0px 20px 0px';
            const nodeName = e.item.getModel().name;
            let formatedNodeName = '';
            for (let i = 0; i < nodeName.length; i++) {
              formatedNodeName = `${formatedNodeName}${nodeName[i]}`;
              if (i !== 0 && i % 20 === 0) formatedNodeName = `${formatedNodeName}<br/>`;
            }
            outDiv.innerHTML = `${formatedNodeName}`;
            return outDiv;
          },
          shouldBegin: (e) => {
            if (e.target.get('name') === 'name-shape' || e.target.get('name') === 'mask-qty-shape') return true;
            return false;
          },
        });
        graph = new G6.TreeGraph({
          container: 'container',
          ...defaultConfig,
          ...config,
          plugins: [tooltip],
        });
        if (typeof onInit === 'function') {
          onInit(graph);
        }
        graph.data(data);
        graph.render();

        const handleCollapse = (e) => {
          const target = e.target;
          const id = target.get('modelId');
          const item = graph.findById(id);
          const nodeModel = item.getModel();
          nodeModel.collapsed = !nodeModel.collapsed;
          graph.layout();
          graph.setItemState(item, 'collapse', nodeModel.collapsed);
        };
        graph.on('collapse-text:click', (e) => {
          handleCollapse(e);
        });
        graph.on('collapse-back:click', (e) => {
          handleCollapse(e);
        });

        // 监听画布缩放,缩小到一定程度,节点显示缩略样式
        let currentLevel = 1;
        const briefZoomThreshold = Math.max(graph.getZoom(), 0.5);
        graph.on('viewportchange', e => {
          if (e.action !== 'zoom') return;
          const currentZoom = graph.getZoom();
          let toLevel = currentLevel;
          if (currentZoom < briefZoomThreshold) {
            toLevel = 0;
          } else {
            toLevel = 1;
          }
          if (toLevel !== currentLevel) {
            currentLevel = toLevel;
            graph.getNodes().forEach(node => {
              graph.updateItem(node, {
                level: toLevel
              })
            })
          }
        });
      };

      initGraph(data);

      if (typeof window !== 'undefined')
        window.onresize = () => {
          if (!graph || graph.get('destroyed')) return;
          if (!container || !container.scrollWidth || !container.scrollHeight) return;
          graph.changeSize(container.scrollWidth, container.scrollHeight);
        };
    },
  }
}
</script>

<style scoped>
#container {
  width: 100%;
  height: 100%;
}
</style>

引入treeMind.vue (复制到页面)


<template>
	<treeMind ref="treeMind"></treeMind>
</template>



<script>
export default {
  name: "tree",
  components: {
    TreeMind,
  },
  data() {
    return {
      //树的数据格式(可自定义字段,需更改treeMind.vue中的参数)
      treeData: {}
    };
  },
  methods: {
  	  // 获取后端传的树格式数据,如 treeData
      queryTreeData(data).then((res) => {
        if (res.status == 0) {
          // 初始化树组件,并传入树格式的数据res.data[0]
          this.$nextTick(() => {
            this.$refs.treeMind.init(res.data[0]);
          });
        } else {
          this.$message.error(res.msg);
        }
      });
  }
}
</script>

树的数据格式如下(可自定义字段)

treeData: {
        id: 'g1',
        name: 'Name1',
        qty: '538.90',
        unit: 'Yuan',
        rate: 1.0,
        color: 'BULE',
        children: [
          {
            id: 'g12',
            name: 'Deal with LONG qty',
            qty: '338.00',
            unit: 'Yuan',
            rate: 1,
            color: 'RED',
            children: [
              {
                id: 'g121',
                name: 'Name3',
                collapsed: true,
                qty: '138.00',
                rate: 1,
                color: 'BULE',
                unit: 'Yuan',
                children: [],
              },
              {
                id: 'g122',
                name: 'Name5',
                collapsed: true,
                qty: '100.00',
                rate: 1,
                color: 'GREEN',
                unit: 'Yuan',
                children: [],
              },
            ],
          },
          {
            id: 'g13',
            name: 'Name9',
            qty: '100.90',
            rate: 1,
            color: 'BULE',
            unit: 'Yuan',
            children: [
              {
                id: 'g131',
                name: 'Name10',
                qty: '33.90',
                rate: 1,
                color: 'RED',
                unit: 'Yuan',
                children: [],
              },
              {
                id: 'g132',
                name: 'Name11',
                qty: '67.00',
                rate: 1,
                color: 'GREEN',
                unit: 'Yuan',
                children: [],
              },
            ],
          },
          {
            id: 'g14',
            name: 'Name12',
            qty: '100.00',
            rate: 1,
            color: 'GREEN',
            unit: 'Yuan',
            children: [],
          },
        ],
      }

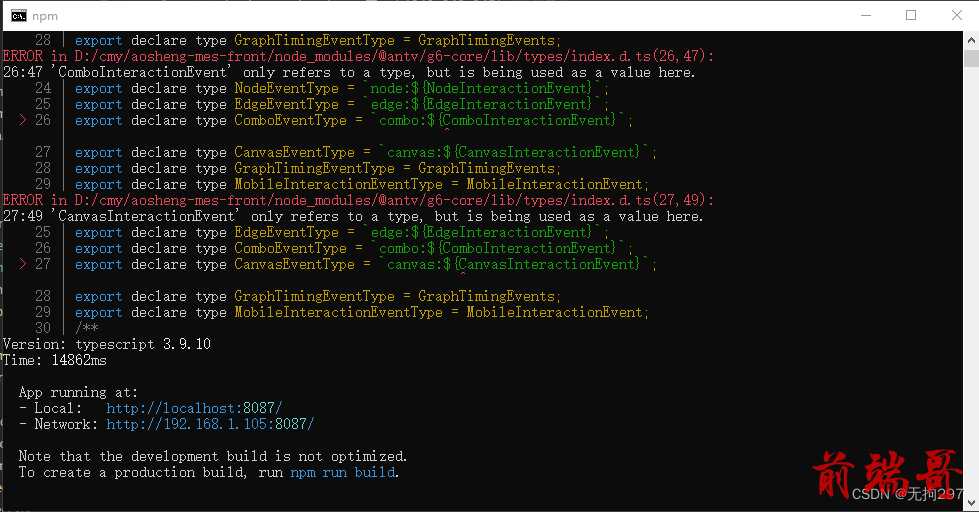

npm install报错

在这里插入图片描述

typescript版本问题,图片上是3.9.10,在package.json文件里更改为"typescript": "^4.2.4",再重新npm install即可

转载请注明出处或者链接地址:https://www.qianduange.cn//article/9165.html
标签
评论
发布的文章

jQuery初学

2024-05-29 10:05:14

Jquery中$,web开发语言

2024-05-29 10:05:25

jQuery 实现小球撞击动画

2024-05-29 10:05:04

echarts 横向柱状图

2024-05-29 10:05:01

Echarts:读取动态数据

2024-05-29 10:05:53

大家推荐的文章
会员中心 联系我 留言建议 回顶部
复制成功!
